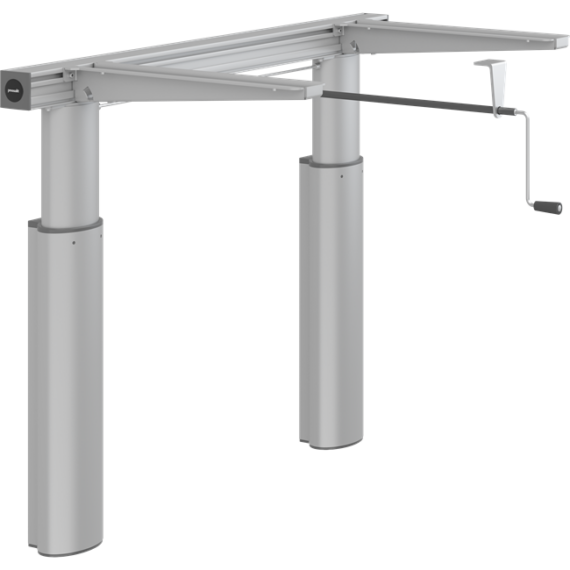

Lift for countertop, manually height adjustable, wall mounted

Name: Lift for countertop, manually height adjustable, wall mounted
SKU: 1668
Price: 100.00 CAD
Availability: InStock

For countertop length 23.6″ – 39.4″

Length

Clear

Request a Quote

Multiple adjustment methods - crank handle and powered

Intuitive controls that can be operated independently

Height adjustment range assists variety of different user requirements

Specifications

ProductCodes

GTIN-13 5708590292755
HMI 54799
EAN 5708590292755

Item number

RK1110

Product group

Lifts for kitchen counter-top, wall-mounted

Product

Lift for countertop, manually height adjustable

Product description

The name INDIVO relates to the individual configuration of the products.

Description

Manual lift for countertop
Lift for countertop, with a crank handle
Including 2 brackets
Lengths from 23.6″-39.4″.
Height adjustable 11.8″.
Incl. mounting kit for brick wall
Please state desired length when ordering

Intended use

INDIVO lifts may be used with most commercially available kitchen countertops and kitchen cabinets, allowing them to be adjusted in height so the kitchen can be used by both seated and standing people.
Expected service life for the INDIVO lifting units is 10 years.

Materials

Material:
Telescopic leg: Aluminium, ABS plastic
Cross braces: Aluminium
Brackets: Steel
Crank handle: Steel
Surface treatment:
Brackets: Powder lacquered (grey RAL 9006)

Ergonomy

Kitchen countertops which can be adjusted in height using a crank handle are the budget solution for kitchens catering to both seated and standing users.
These are most commonly used in kitchens which do not require frequent, daily adjustment.

Features

Manual lifts are adjusted in height using a crank handle.
They can be used with countertops, with or without an edge.
The crank handle socket can be positioned anywhere along the front edge, except under a sink or hob.
Lifts can be adapted to most standard kitchen components.
Lifts are available for countertops of any length between 23.6″ and 118.1″.
Height adjustable 11.8″.

Product capacity

Maximum load (evenly distributed):
220 lbs including countertop.

Adjustability

Height adjustable

Sales unit

pcs

Weight

48.28 lbs

Gross weight

50.49 lbs

Weight per crate

50.49 lbs

Crates per pallet

99999

Qty per crate

Qty per pallet

99999

Cleaning

This product should be cleaned with hot water or a mild cleaning solution.
Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.The following cleaning agents have been tested by Pressalit and may be used, as long as they are diluted according to the instructions on the container.DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Sprit (husholdningssprit)
Suma Bac D10
Virkon
Rodalon Desinfektionsspray
Lysoformin Spezial
CaviCide
Sufanios Premium
Tvättsprit 70%NON-DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200
Milizid Citro

The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.

DECALCIFICATION OF ALUMINUM PARTS:
Pressalit recommends that water deposits (Calcium, lime etc.) be removed from wall tracks and other aluminum parts using a solution of three parts of 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts should be wiped over with a damp cloth wrung out in plain water.

Warranty

Pressalit makes a commitment to remedy material and manufacturing defects for a period of three years from the invoicing date.

Request a Quote for Lift for countertop, manually height adjustable, wall mounted

Indivo Design Guide and Questionnaire

This design guide offers valuable tips for planning your space and details on the information we need to help you get started. We custom-build each INDIVO lifting system to fit your specific space. To provide an accurate quote, please complete the questions below and attach your space's drawings. After reviewing your submission, we’ll reach out with any questions and offer our recommendations. We look forward to working with you to bring your accessible workspace dreams to life!

Please complete questions #1-9 and submit your form along with your drawings.

Name(Required)

Project(Required)

Email(Required)

Phone(Required)

1. Select the weight capacity of your lifting unit: 220lbs / 330 lbs.

What’s the difference?

220lb weight capacity unit has 2 lifting actuators: For countertops between 23.6” to 94.7” long

330lb weight capacity unit has 3 lifting actuators: For countertops between 55.2” and 94.7” long

220lbs / 330 lbs.

*If your counter is granite or any type of stone, or has a cooktop or sink, select 330lbs.

2. What is the size of the countertop? Length (A) x Width (B)

(depth of countertop must be between 20.08” and 27.56”)

Length of countertop (A) in inches

Depth of countertop (B) in inches

3. Will the countertop have a sink or cooktop?

Will the countertop have a sink or cooktop?

Indicate the location of the sink and/or cooktop on your drawing. You must leave at least 2.76” inches from the back and side edges of the worktop to the cut-out for the sink or cooktop so it doesn’t collide with the lifting units support arms, wall frame or actuators. Make sure that there are no outlets installed below the worktop, any higher than 19.69” above the floor or on the wall above the worktop in the range it will be adjusting.

4. What travel distance/height adjustment range is required? in inches

Choose between 7.87” and 11.81"

5. Will the countertop have a fascia?

Will the countertop have a fascia?

We recommend adding a fascia along the front edge and sides of your countertop. This fascia, typically made from wood or the same material as the countertop, is a vertical edge plate fitted to the underside of the worktop. It hides electrical installations and provides a mounting point for safety bars. These bars are installed on the bottom edge of the fascia to prevent the countertop from moving downward when resistance is detected.

Here are some important points:

You will need a fascia if you plan to adjust the lifting units using a built-in switch.
The fascia should have a minimum downstand of 2.76” and be between 0.63” and 1.18” thick.
Your kitchen worktop supplier can provide a quote for the fascia.

Length of fascia (C) in inches

Depth of fascia (D) in inches

6. Safety Bars:

We recommend the use of safety bars. They detect an object and stop the downward movement of the countertop. These will guard against incidents leading to material damage or personal injury. Safety bars are mounted to the bottom edge of the fascia.

Safety bar along the front of worktop:

Safety bar along left side of worktop:

Safety bar along right side of worktop:

7. Select your option for the adjustment of the countertop:

Select your option for the adjustment of the countertop:

See Installation Guide for complete switch mounting instructions.

8. Is there more than one Height Adjustable Countertop in your design?

Will the countertop have a fascia?

9. Will there be two or more height-adjustable countertops next to each other?

Will the countertop have a fascia?

A separate Design Guide form must be filled out for each lifting unit.
Adjacent countertops will require interconnection of safety to avoid crushing injuries.
