NextGen Wall Mount Change Table
Can-Dan NextGen Wall Mount Change Table
Built for inclusive spaces. Designed for dignity, safety, and accessibility.
The Can-Dan NextGen Wall Mount Change Table is a powered, height-adjustable, foldable change table designed for accessible washrooms in public buildings, schools, care facilities, airports, recreation centres, and other inclusive environments.
Engineered for both adult and paediatric use, the NextGen supports safer transfers, improved caregiver ergonomics, and greater accessibility for users of all sizes and abilities.
Available Sizes
- 62″ x 28″
- 72″ x 30″
- Wall-mounted, foldable design
- Optional NextGen Floor Stand available when the wall structure is not suitable
Key Features
- 550 lb / 250 kg weight capacity
- Power height adjustable
- Height range: 17″ to 35″
- Built-in Smart STOP safety function
- Fold-up design helps save space when not in use
- Two user control switches included
- Swing-away side rail with integrated handholds
- Solid phenolic lying surface
- Powder-coated steel frame
- Waterproof electrical system: IPX6
- Designed for easy cleaning and maintenance
- Made in Canada
Options
- Safety belt or belts for positioning
- Mattress (standard or dual density foam)
- Locking pull pin with padlock hole for upright storage
- Hand control in place of one control switch
- Lock box for hand control
- Lock box for ceiling lift spreader bar
Code Compliance & Electrical
The NextGen Wall Mount Change Table is designed to support accessible washroom planning and complies with major Canadian accessibility and building standards.
- Complies with CSA B651:23
- Complies with NBC
- Complies with OBC 3.8
- Certified by Intertek
- Conforms to UL 73
- Certified to CSA C22.2 No. 68
Materials
- Frame: coated stainless steel / powder-coated steel frame
- Lying surface: solid phenolic
- Wall cover: PVC
- Side rail: solid phenolic folding side rail
Optional Mattress
A mattress is available as an optional accessory and may not be installed on every NextGen Change Table.
When included, the mattress is designed to support comfort, safety, and easy cleaning.
Available in Canada
Request a QuoteSizing
Model 21-30-72
| Length of Laying Surface | 1830 mm (72”) |
| Depth of Laying Surface | 762 mm (30”) |
| Assembled Depth from Wall (unfolded) | 953 mm (37”) |
| Assembled Depth from Wall (folded) | 292 mm (12”) |
| Assembled Height of Wall Unit | 1254 mm (49”) |
| Height Adjustment Range | 460 mm (18”) |
| Laying Surface – Lowest Position (from floor) | 435 mm (17”) |
| Laying Surface – Highest Position (from floor) | 895 mm (35”) |
Model 21-28-62
| Length of Laying Surface | 1575 mm (62”) |
| Depth of Laying Surface | 711 mm ( 28″) |
| Assembled Depth from Wall (unfolded) | 953 mm (38”) |
| Assembled Depth from Wall (folded) | 292 mm (12”) |
| Assembled Height of Wall Unit | 1254 mm (49”) |
| Height Adjustment Range | 460 mm (18”) |
| Laying Surface – Lowest Position (from floor) | 435 mm (17”) |
| Laying Surface – Highest Position (from floor) | 895 mm (35”) |
Specifications
Features
- Wall-mounted, foldable design for compact storage when not in use
- The table can be locked in the upright folded position using the locking pull pin to secure and safely store the table in the folded position
- Gas spring assist folding mechanism
- Electrically height adjustable
- Two user control switches ensure that height adjustment controls are always within reach
- Folding side rail with hand holds, locks in both the upright position (for added user safety and support) and locks away under the table when not in use
- Integrated handholds provide ergonomic support for user positioning
- Lying surface and side rail are made of non-porous solid phenolic material – sanitary, waterproof and easy to clean
- When the wall structure is not suitable for installation, the optional NextGen Floor Stand can be installed to transfer the load directly to the floor
Benefits
- Low height adjustable starting point allows for safe independent transfers, promoting independent lifestyles for individuals with mobility constraints, their families and caregivers
- Power height adjustment reduces physical strain on caregiver, decreases injuries and improves care
- Two user control switches, ensures that the controls are accessible and always within reach of the user and caregiver
- Solid phenolic surfaces are easy to clean, non-porous,
and resistant to damage from chemical cleaners and moisture - The lying surface can be locked in the upright folded position using the optional locking pull pin or add
a padlock to secure and safely stow the laying surface in a folded position - Easy to install
- When the wall structure is not suitable for installation, the optional floor stand can be installed to shift the load to the floor
Load capacity
250 kg (550 lb)
Code Compliance
- Complies with CSA B651:23, NBC, and OBC 3.8
Electrical
- IPX6 waterproof electrical system
- Certified by INTERTEK. Conforms to UL 73 Cert. to CSA C22.2 No.68. Control number #4009940
Smart STOP Technology
- Built-in Smart STOP safety technology stops table movement when an obstruction or resistance is detected, removing the cost, complexity and installation challenges associated with external stop buttons.
Material
- Frame: Coated stainless steel
- Lying Surface: Solid Phenolic
- Wall cover: PVC
Warranty
Can-Dan Rehatec Ltd. as manufacturer warrants from the date of delivery to the first consumer that each item described below, as new and unused, will be free from any defects in material and/or workmanship for a period of Four (4) years on the change table frame (Manufactured by Can-Dan Rehatec Ltd.) LINAK® LA40HP Actuator, LINAK® CO71 Control Box and accessories.
Accessories include:
• Tabletop
• Side Rail
• Front Cover
• User controls – LINAK® FS3 control switch and LINAK® HB30 hand control (optional)
• Mattress (optional)
• Safety Belt(s) (optional)
• Locking Pin (optional)
Features

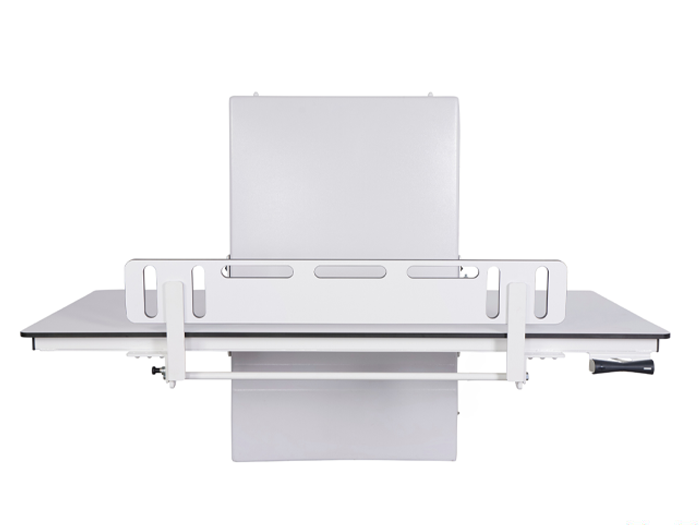

The NextGen Change Table features a swing-away side rail with integrated handholds for added safety and positioning assistance.

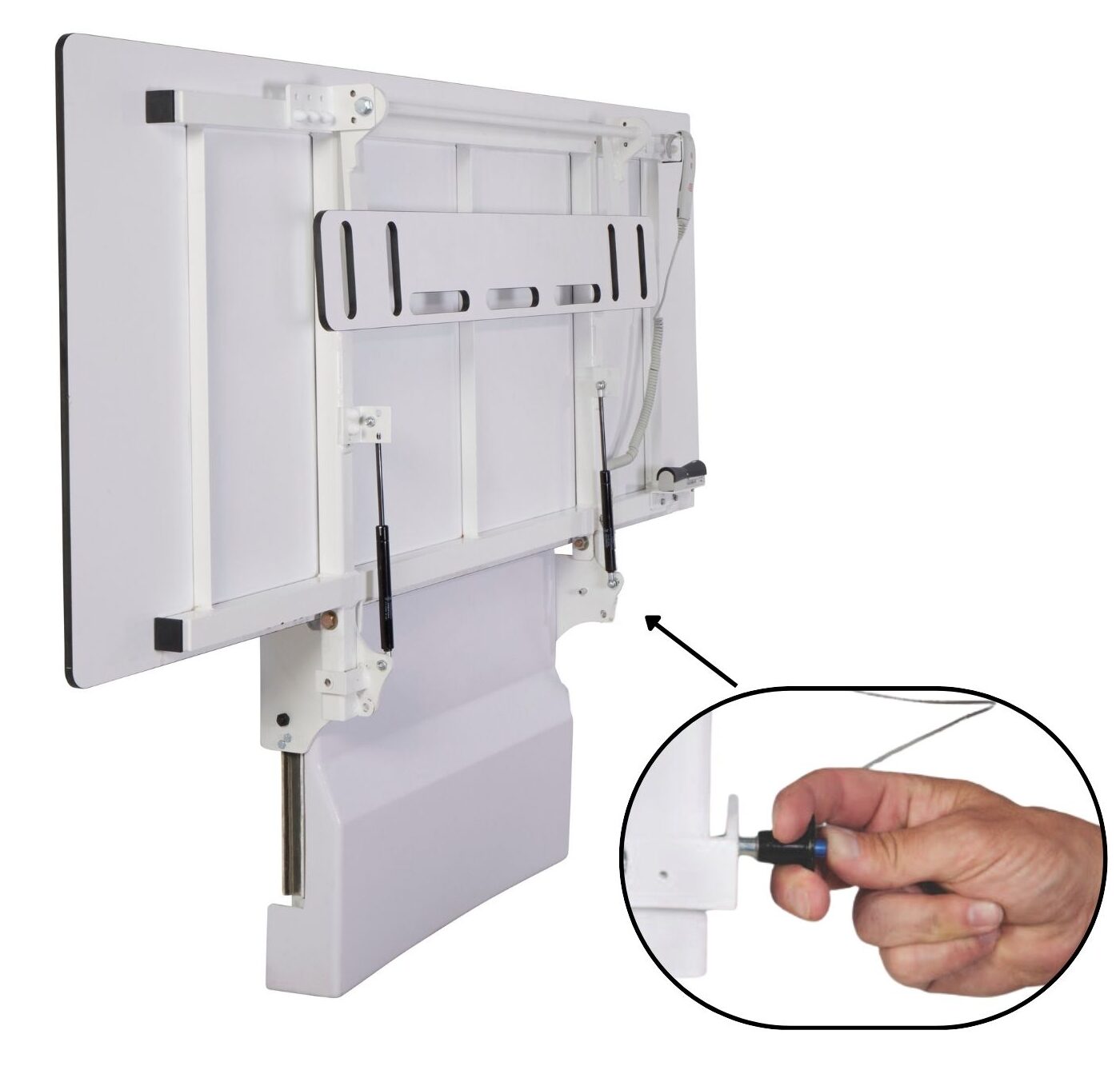

Optional locking pin: The laying surface can be locked in the upright stowed position when not in use. The optional locking pull pin can be used to further secure the upright storage of the table with the option to add a padlock.

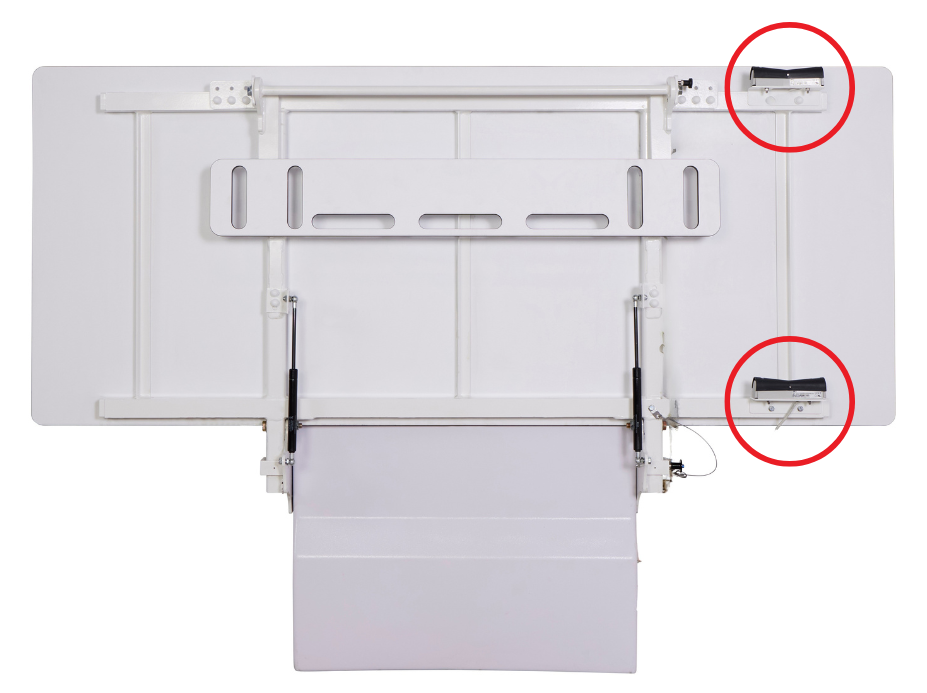

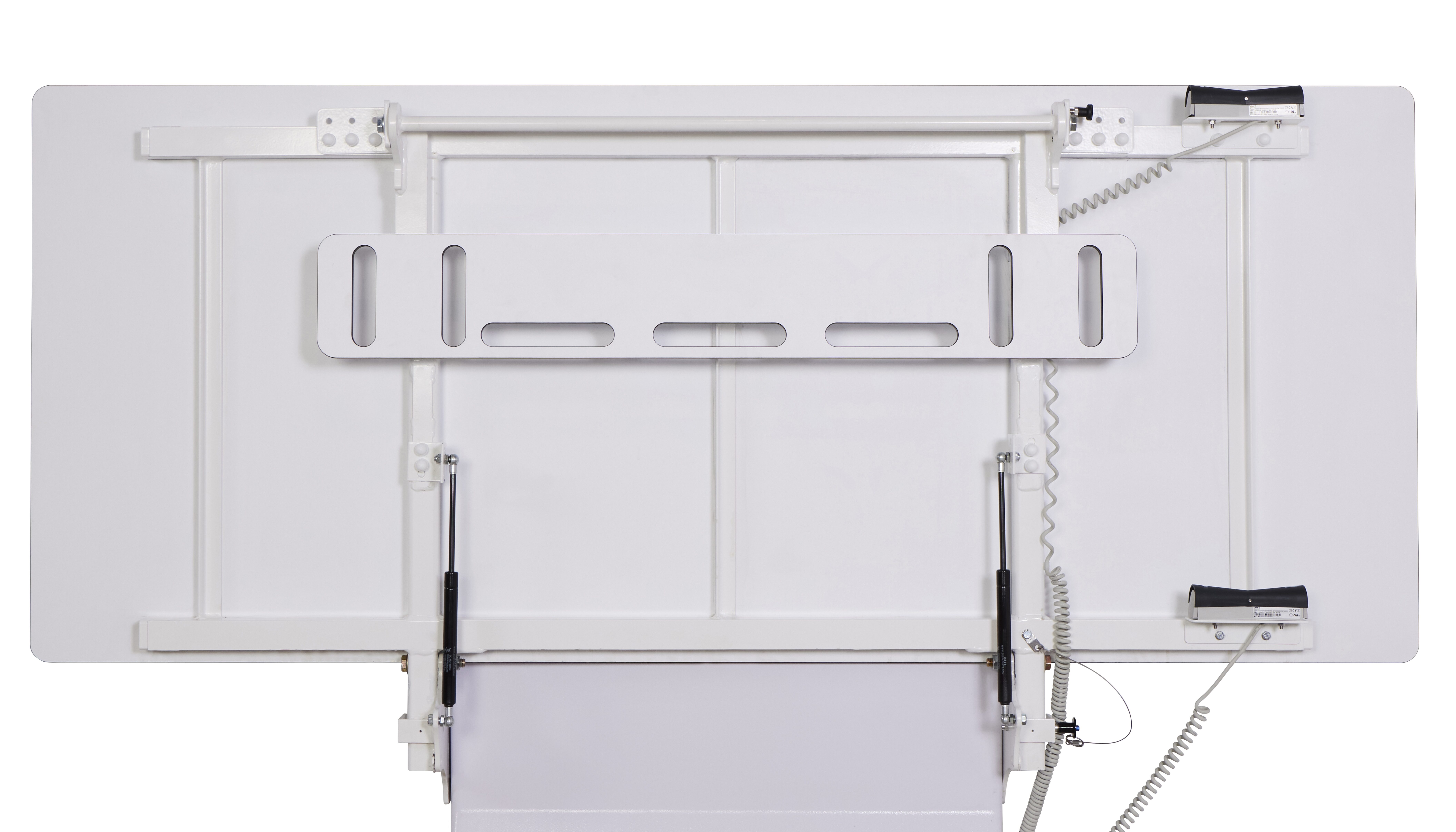

Two user control switches, ensures that the controls are accessible and always within reach of the user and caregiver.
The two user control switches are one touch operated. Push the up or down arrow to raise or lower the laying surface, simply release to stop movement.

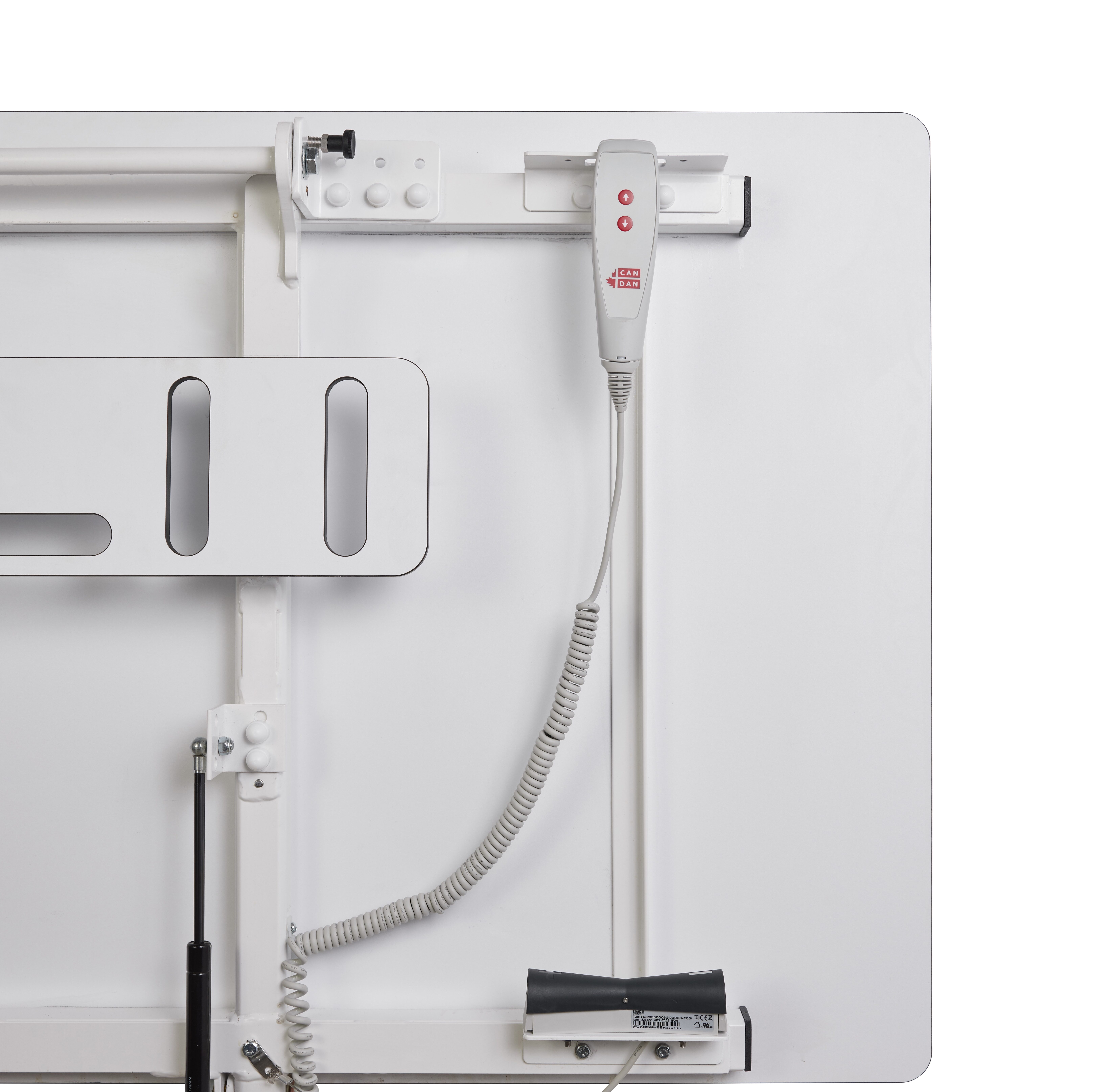

Option: Hand control for added versatility (in place of one user control switch).
Option 1” vinyl mattress for added user comfort.

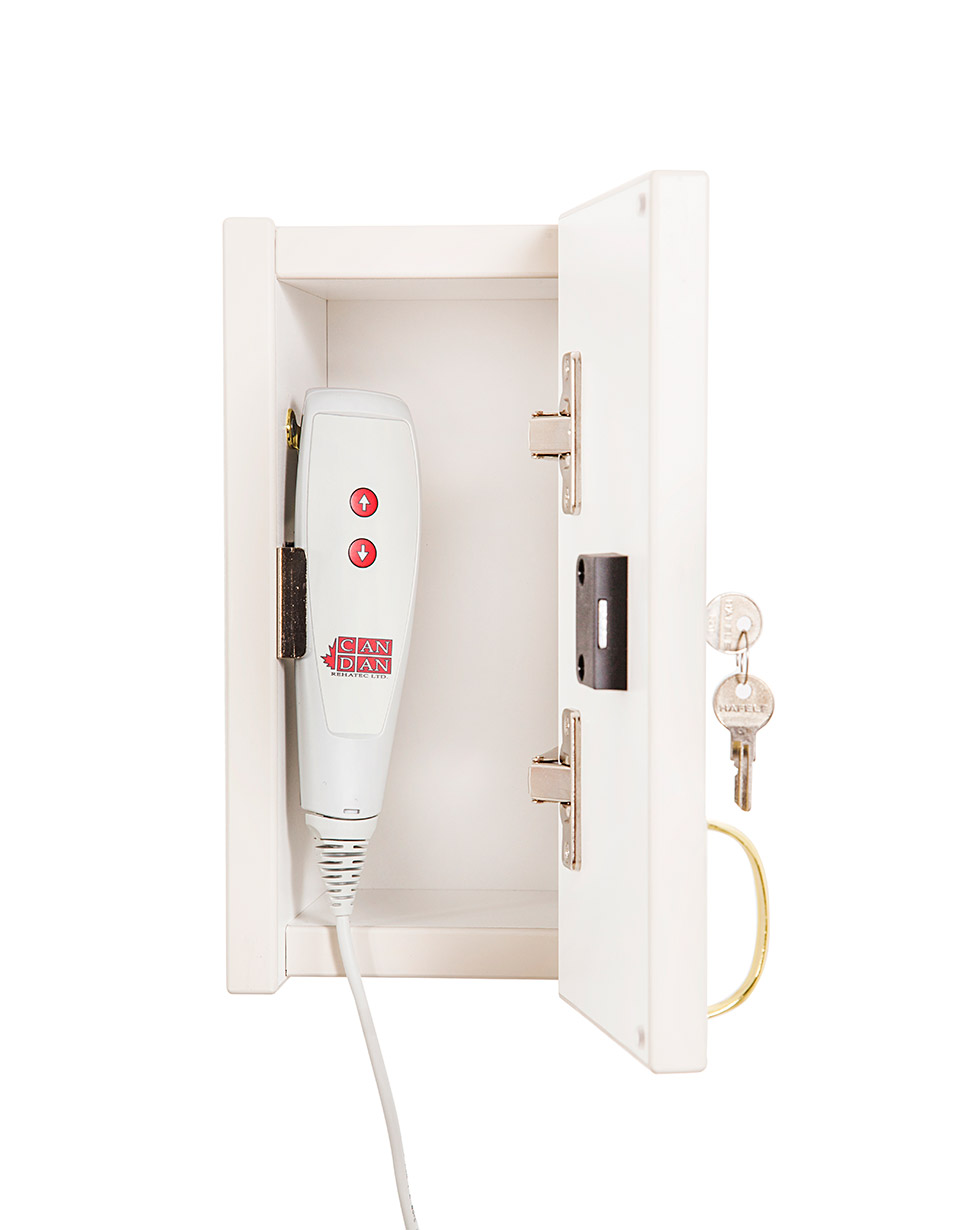

Option: Lock box for hand control. Lock box for spreader bar (not pictured).

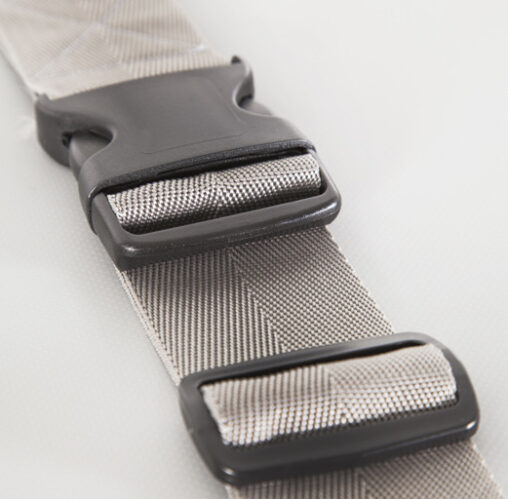

Option: Safety belt(s) for positioning. Choose one or two.
Option: NextGen Floor Stand (P/N 20-24-FL). When the wall structure is not suitable for installation, the optional floor stand can be installed to shift the load to the floor.
NextGen Floor Stand shown with NextGen Change Table, in the open position.
NextGen Floor Stand shown with NextGen Change Table, in the stowed position.
Cleaning & Maintenance
Mattress
(Note: Mattress is optional and may not be installed on the change table)
- Do not use ammonia, bleach, isopropyl alcohol, or harsh solvents
- Clean with a mild disinfectant diluted with water
- Wipe down using a clean cloth
- Rinse with water-dampened cloth to avoid residue
- Dry thoroughly with a clean towel or cloth – do not
Frame, Tabletop, and Cover
- Use mild soap or a hospital-grade disinfectant
- Wipe clean and dry after each use
Resources
- BROCHURE_NextGen_ChangeTable_V_1.7_0726
- ORDERFORM_Can-Dan_NextGen_WallMount_Change_Table_V_1.4_0526
- INSTALLATION_GUIDE_Can-Dan_NextGen_Change_Table_V_1.4_0426
- OWNERS_MANUAL_NextGen_Change_Table_V_1.1
- SPEC_TDS_Can-Dan_NextGen_Change_Table_V_1.2_0526
- SPEC_NEXTGEN_21-30-72_3PARTSPEC_V1.3_0726
- GUIDE_INSTALLATION_Load_Bearing_Recommendations_Can-Dan_NextGen_CD7007_0226_v1.1
- Hole Placement for NextGen Wall Mount Change Table (21-28-62 & 21-30-72) Drawing
- Adult Changing Table Wall Mount NextGen Model 21-30-72 Open RFA
- Adult Changing Table Wall Mount NextGen Model 21-30-72 Closed RFA
- NextGen Change Table Wall Mount CAD Model V1.0
